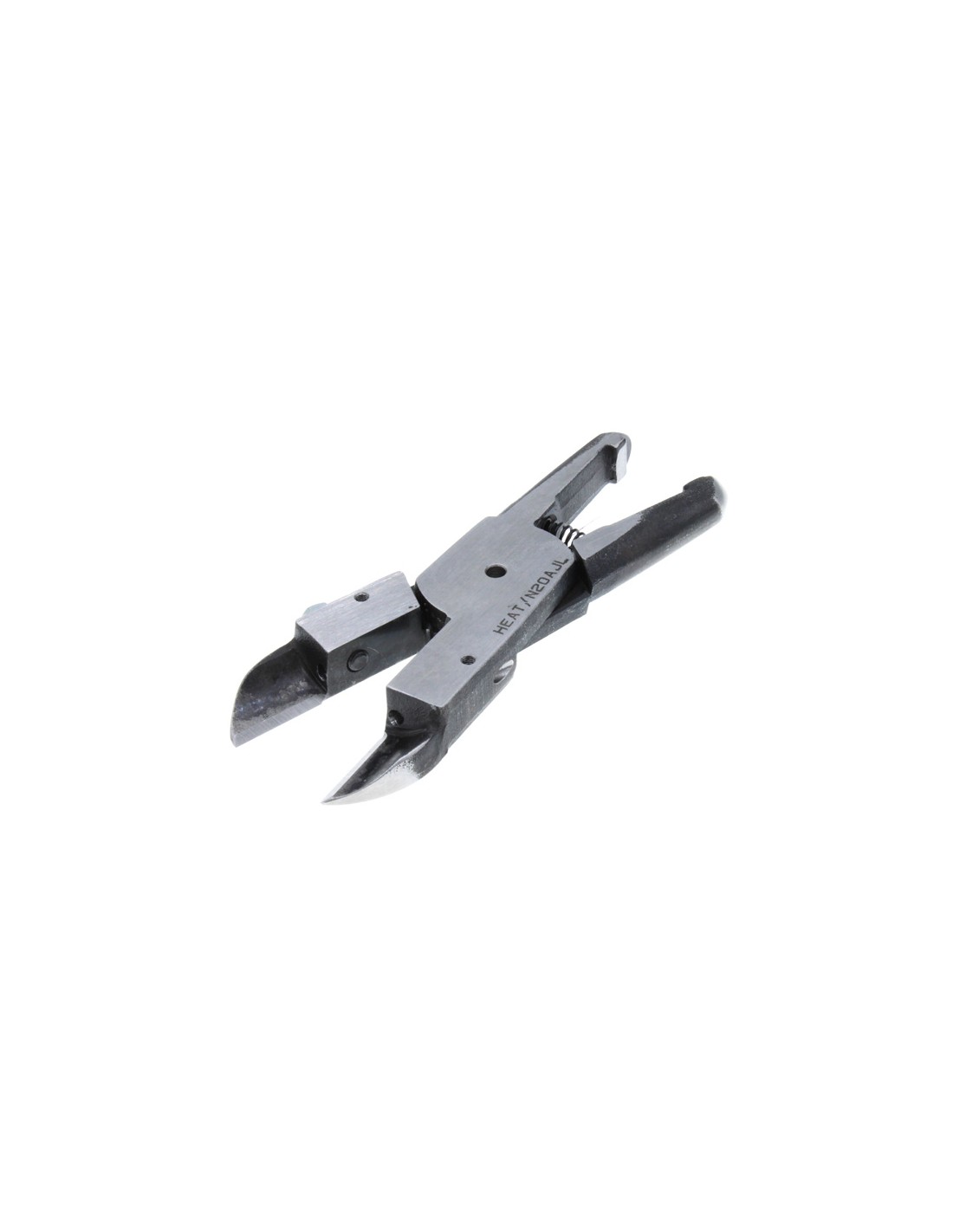

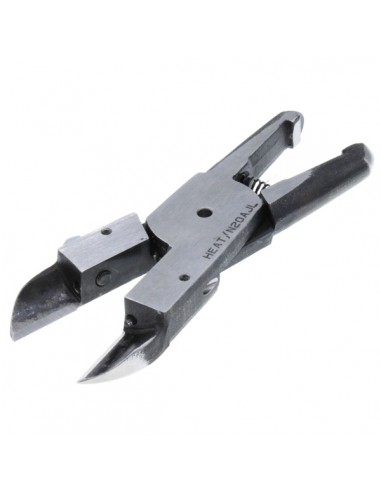

The HEAT/N20AA steep angle air nipper blade is heat-ready and accepts a 1/8” x 1.25” long heating element/thermocouple from JDV’s optional heating packages. Using a heated blade is ideal for cutting tough materials at room temperature such as glass or nylon filled plastic, acrylics, and other hard plastics. It helps prevent chipping, stress cracks, or part discoloration and leaves a smooth clean-cut finish.
- Heat-ready for JDV's HC-Series optional heating package
- Forged out of the finest Japanese steel for durability and reliability
- Ultra-sharp cutting edges provide a precise clean-cut finish
- Equipped with factory set built-in stops in the legs of blade
- Blades open and close by a spring mechanism
- Blade Style
-
Straight
- Blade Cutting Edge Length (mm)
-
25
- Blade Opening Tip to Tip (mm)
-
19
- Blade Material
-
Alloy
- Blade Function
-
Cut Plastic
- Heat Ready Blades
-
Heat Ready Blades
