Torque: 0.15 - 1.2 Nm
No load speed: 650 - 1150 rpm
Bit type: 1/4 HEX
Type: ESD type
Start type: lever start
Shut off: automatic
Direction: clockwise / counter-clockwise
Motor: with carbon brush
Accuracy: +- 3%
Weight: 490 g
Length: 228 mm
Grip diamater: 34 mm
Machine screw size: 2 - 3 mm
Tapping screw size: 2 - 2.6 mm
APM-301C power supply: speed setting, input voltage 100 - 240 VAC 50 / 60 Hz, output voltage 20 - 30 VDC, connection 6 pin, power 75 W, weight 380 g, dimension 172 x 84 x 46 mm, input signal release screwdriver, output signals ready for operation, torque reached

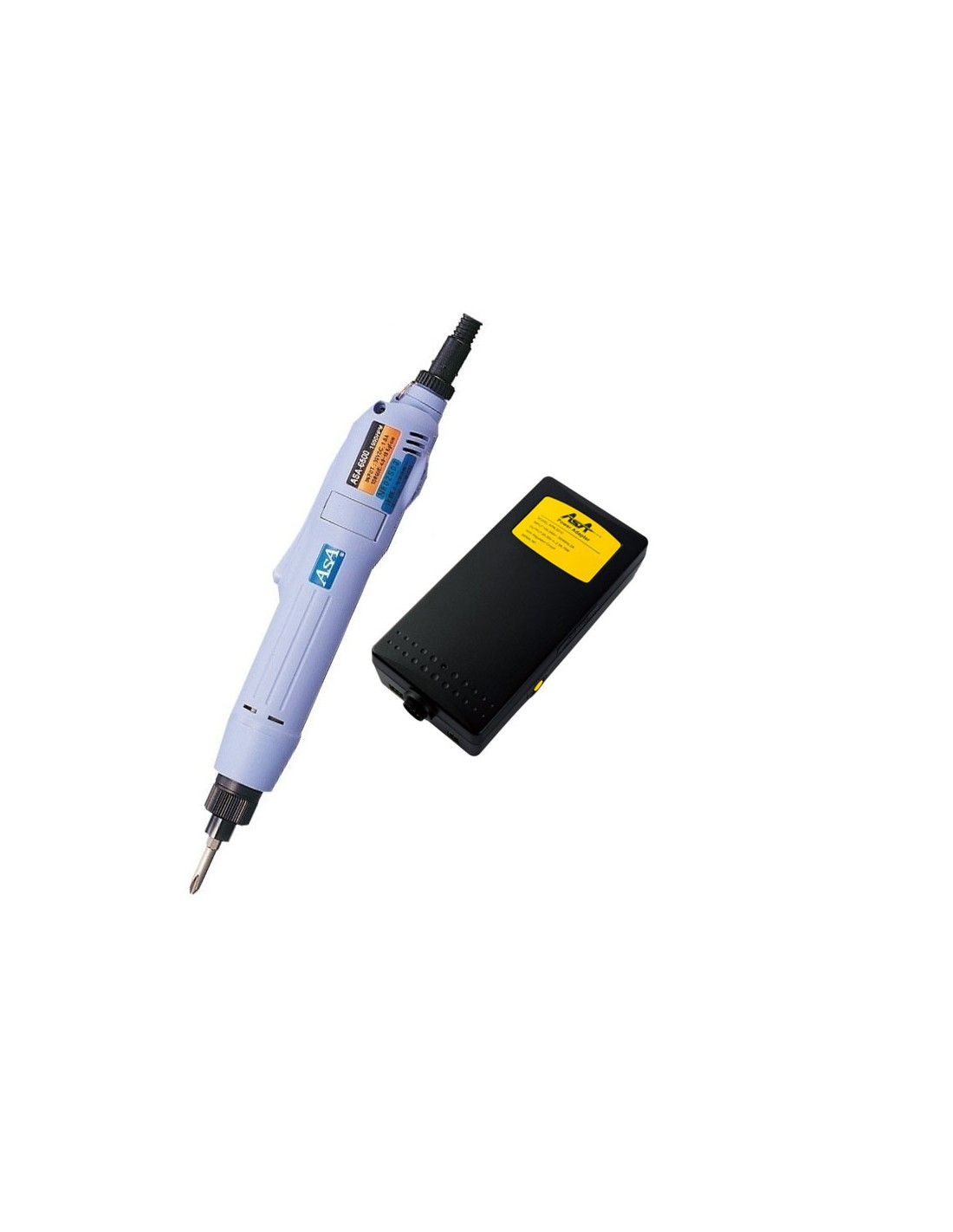

Scope of supply: ASA-6000 ESD screwdriver, APM-301C power supply, screwdriver cable, 1 pair carbon brush
Accessories: 4H2053 torque cover, 4A9123 angle head
