| Model Number (EDP #) | HPF-1 (623048) |
| Ionizing Method / Applied Voltage | AC corona discharge / 3.5kV and 50/60Hz (adjusted on GP-1 4kV) |
| Power Supply | DC 24V ±10% |
| Ion Balance | Adjustable on GP-1 4kV (charged plate monitor or equivalent is required) |
| Decay Time | Within 1 sec approx. (43.5psi/0.3MPa at 6"/150mm) [measured values] |
| Air Pressure / Operating Fluid | 14.5psi to 101.7psi MAX (0.1-0.7MPa), Clean Dry Air More than MAX pressure may cause serious risk of damage to body and parts |
| Operating Range | 1.97" to 11.81" (50mm to 300mm) between charged item and discharge tip of gun |
| Dimensions (LxHxD) | See DIMENSIONS tab |
| Estimated Weight | 1.52 lbs (0.69kgs / 690g) including 3m cable and high-pressure connector |
| Termination Connector | CON-4 high-pressure connector |
| Air Supply Hose Diameter | Ø6mm Tube Fitting, One-touch joint |
| Air Consumption | 5.3 ft/m3 (150L/min @ 0.3MPa) approx |
| Noise Level | 95dBA (43.5psi / 0.3MPa) |
| Working Temp Range | 41-113°F (5 - 45°C) |
| Working Humidity Range | 10~80% RH (non-condensing, non-freezing) |
| Operating / Warning Indicators | GP-1 4kV high-voltage power supply provides high-voltage anomaly detection function and automatic stop circuit |
| Materials | Nozzle Tip: SUS304 Electrode Needle: Titanium Insulation: Fluoresin Flexible Tube: Chrome plated steel Air Branch Unit: Aluminum |
| High-Voltage Cable | 9.8ft (3m) silicon shielded cable |
| Markings | CE, RoHS |
| Country of Origin | Japan |

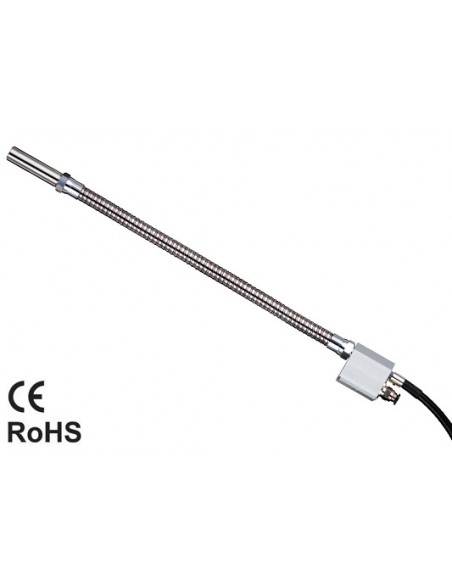

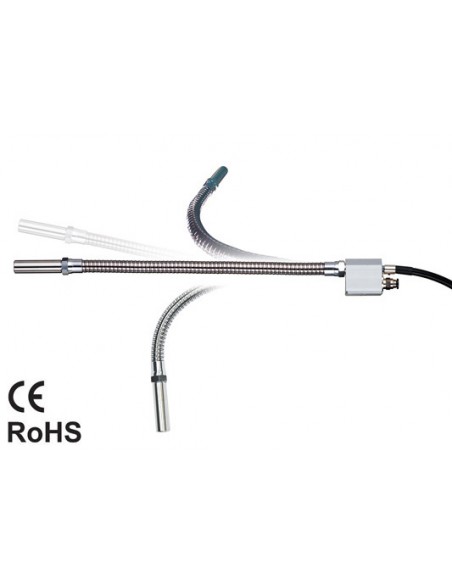

HIGH POWER FLEXIBLE NOZZLE IONIZER w/SILICON SHIELDED HIGH VOLTAGE CABLE | VESSEL HPF-1
VESSEL HPF-1
