| Power Supply Input | AC corona discharge / 3.5kV / 50/60Hz (adjusted on GP-1 4kV) |
| Rated Input Voltage | 24V DC ±10% |
| Ion Balance | Adjustable on GP-1 4kV (charged plate monitor or equivalent is required) |
| Variable Output Range Without Loud (rms) |
AC Output 4kV DC output -150V to +550V |
| Secondary Short Circuit Current | 5mA or lower |
| Output Monitor | 1/100V ±5% of the output voltage is to emit to the monitor terminals |
| Low-Voltage Detection | Anomaly detection function will operate when each output drops to about 85% or less of the set voltage due to high voltage short circuit or abnormal sparks |
| Overcurrent Detection | Anomaly detection function will operate when the output current is about 4mA or more |
| Anomaly Detection Sensitivity Adjustment |
The anomaly detection response speed can be adjusted using external adjustment knob |
| Dimensions (LxHxD) | 4.1" x 4.5" x 9.2" (102.8 x 114.2 x 233.5mm) |
| Estimated Weight | 9.9 lbs (4.5kgs) |
| Termination Connector | CON-4 high-pressure connector |
| Power Supply Input | Molex 5569-04A1-210 |
| Air Supply Hose Diameter | Ø8mm Tube Fitting, One-touch joint |
| Noise Level | 95dBA (43.5psi / 0.3MPa) |
| Working Temp Range | 32-122°F (0 - 50°C) |
| Working Humidity Range | 10~90% RH (non-condensing, non-freezing) |
| Operating / Warning Indicators | GP-1 4kV high-voltage power supply provides high-voltage anomaly detection function and automatic stop circuit |
| Materials | Housing: SPCC, painted white |
| High-Voltage Connector | Ceramic high voltage output terminal x2 |
| Alarm Output Terminal | C contact relay output |
|
Includes |
High-Voltage Cable (3m), User's Manual |
| Markings | CE, RoHS |
| Country of Origin | Japan |

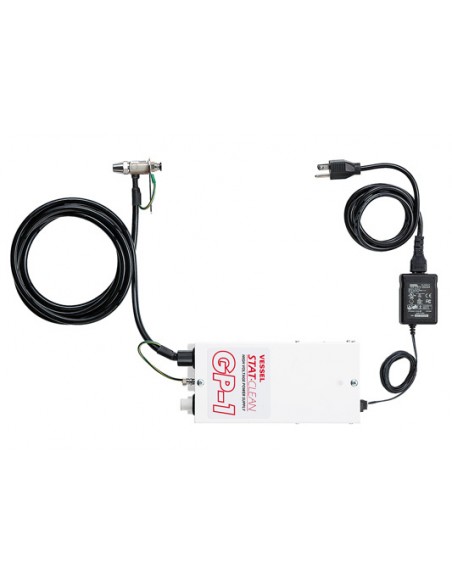

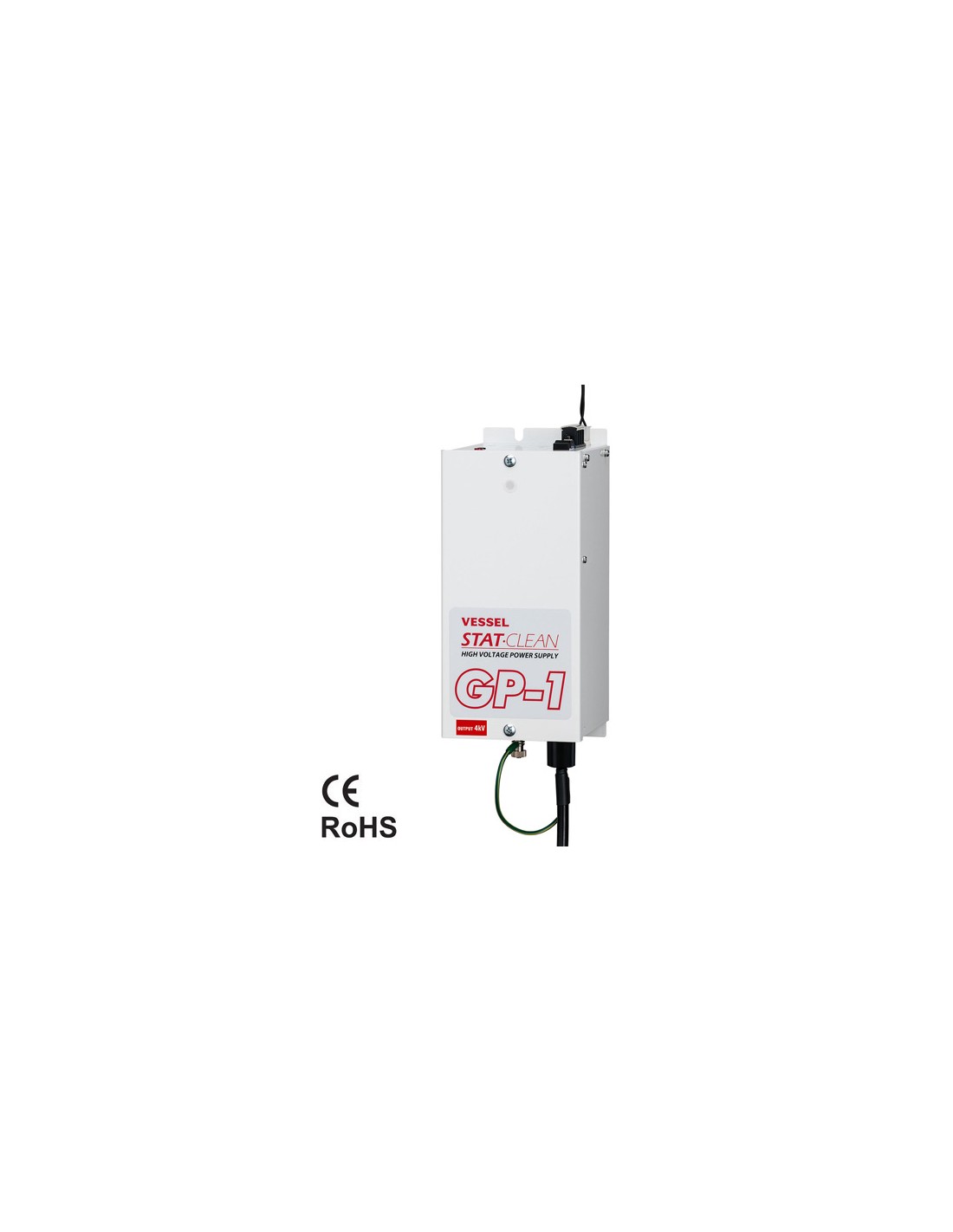

HIGH-VOLTAGE 4kV POWER SUPPLY UNIT WITH 2-POWER OUTPUTS | VESSEL GP-1
VESSEL GP-1
